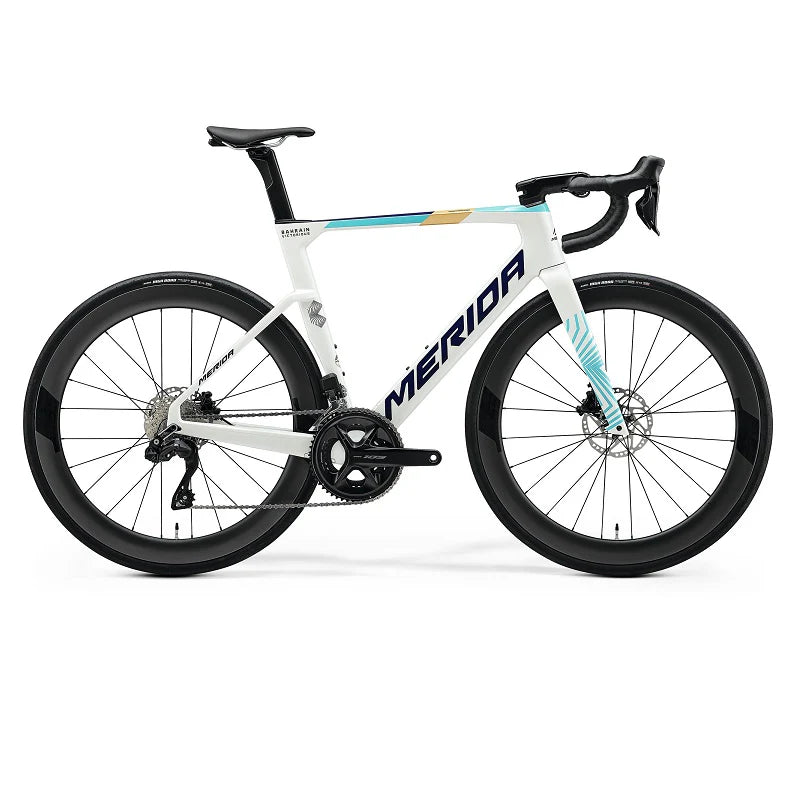

MERIDA Reacto 6000 Disc 2024
MERIDA Reacto 6000 Disc 2024
FRAME
REACTO CF3 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12 mm axle standard
BB86,5 bottom bracket standard
FORK
REACTO CF3 IV disc
material: carbon
700x30C max. wheelsize
BRAKES
Shimano 105
Hydraulic disc
ROTORS
Shimano RT64
160 mm
BRAKE LEVER
Shimano 105
HEADSET
FSA ACR
HANDLEBAR
MERIDA EXPERT CW
HANDLEBAR STEM
FSA SMR ACR
material: aluminium
-6° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL
GRIP
MERIDA ROAD Expert
DERAILLEUR (F)
Shimano 105 Di2
DERAILLEUR (R)
Shimano 105 Di2
SHIFTERS
Shimano 105 disc Di2
SEAT POST
MERIDA TEAM CW
Aero shape
15 mm setback
material: Carbon
SEAT CLAMP
MERIDA REACTO Aero
SADDLE
MERIDA EXPERT SL
CHAIN
Shimano CN-M6100-12
CRANK
Shimano 105
FCR7100, 50-34 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL
FREEWHEEL
Shimano CS-R7100
11-34 teeth
12 speed
BOTTOM BRACKET
Shimano SM-BB72-41B
HUBS
VP CLK170F / VP 270SB
RIM
MERIDA EXPERT CW
19 mm inner width
30 mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)
TYRE FRONT
Continental Grand Sport Race
700x28C
TYRE REAR
Continental Grand Sport Race
700x28C
AXLES
MERIDA EXPERT SL
SPOKES
Double Butted Black stainless
WEIGHT
8.63 kg
