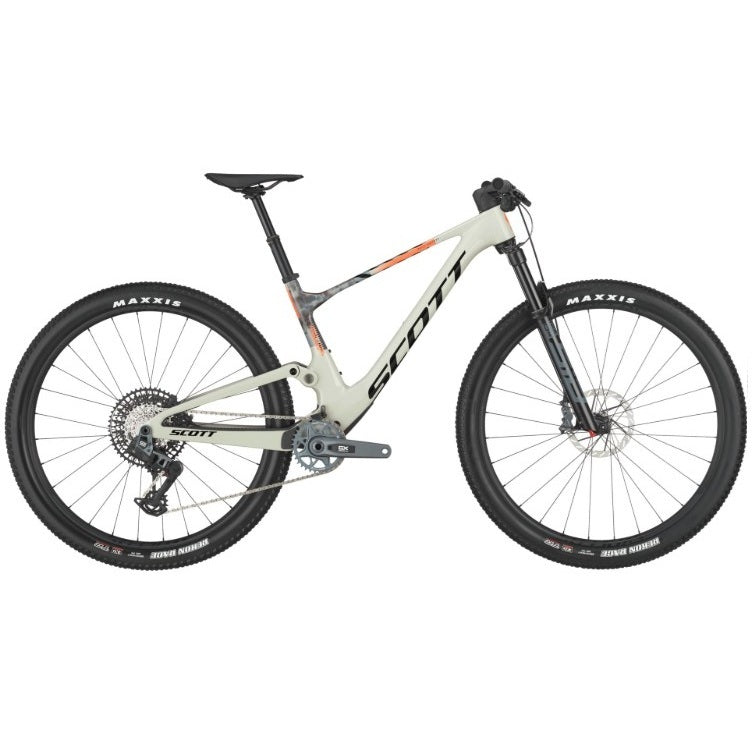

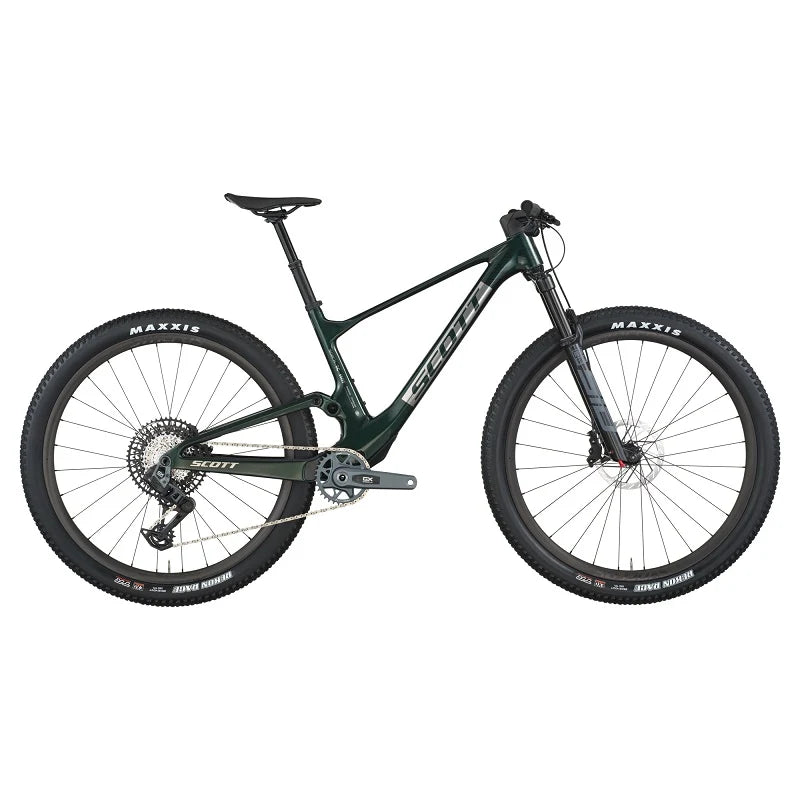

SCOTT Spark RC Team Issue TR AXS (2026) - Pre Order

Frame
Integrated Suspension Technology
Spark RC Carbon HMF
Flex Pivot, Adjustable head angle
Syncros Cable Integration System
BB92, UDH Interface, 12x148mm with 55mm Chainline

Fork
RockShox SID Select 3P Air
Charger RL 3-Mode Damper
15x110mm Maxle Stealth, 44mm offset, Tapered steerer
Lockout, Reb. Adj., 120mm travel

Rear Shock
RockShox NUDE 5 RL3 Trunnion
SCOTT custom w. travel, geo adj.
3 modes: Lockout-Traction Control-Descend
Debon Air, Reb. Adj.
Bearing Hardware/ Travel 120-80-Lockout, T165X45mm

Remote System
SCOTT TwinLoc Technology
3 Suspension modes
Suspension & Dropper Remote

Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System

Shifters
SRAM AXS Pod Controller

Crankset
SRAM GX Eagle Transmission
DUB, 55mm CL, 34T

Chainguide
SCOTT custom

BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm

Chain
SRAM CN GX Eagle Transmission

Cassette
SRAM GX Eagle XS 1275 Transmission 10-52

Brakes
SRAM Motive Bronze 4-Piston Disc

Rotor
SRAM HS2 CL Rotors 180/F and 160/R

Handlebar
Syncros Fraser iC SL XC Carbon
-12° rise, back sweep 8°, 740mm
Syncros Performance XC lock-on grips

Seatpost
Syncros Duncan Dropper 1.5XC, 31.6mm, all sizes 100mm

Seat
Syncros Belcarra V2.0 Cut Out
CRMO rails

Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB

Wheelset
Syncros Silverton 1.0-30 CL
F: 15x110mm, R: 12x148mm
30mm Tubeless ready Carbon rim 28H
Syncros Hubs, XD Driver
Syncros SL Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools

Front Tire
Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO

Rear Tire
Maxxis Rekon Race, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO

Approx weight in KG
11.7 (Tubless setup)

Max. System Weight
130kg
